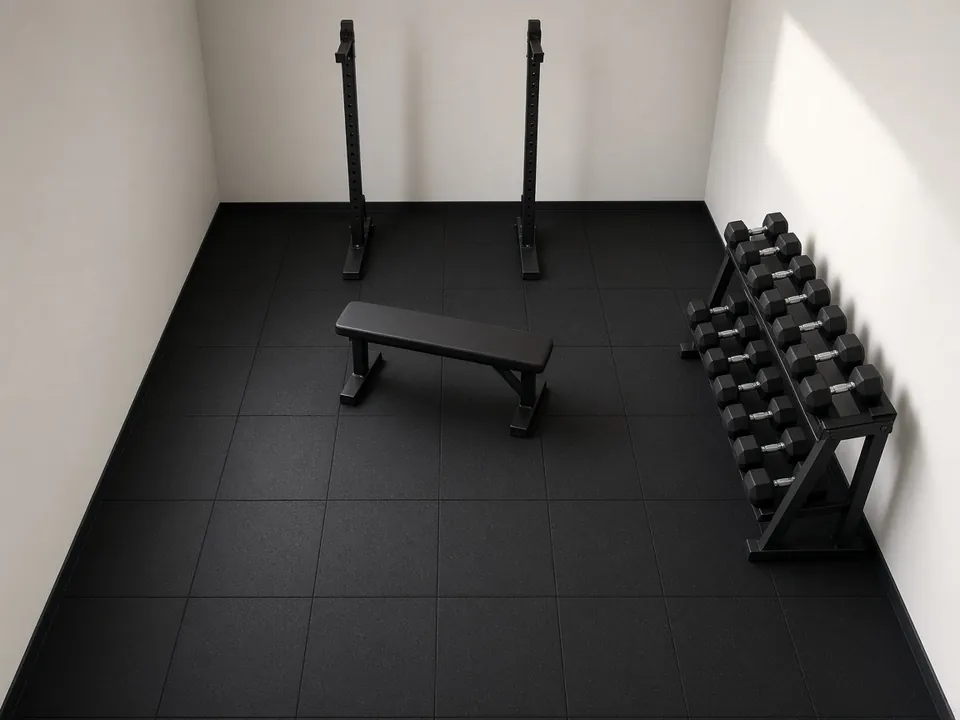

A room on black rubber tiles with squat stands against the back wall, a flat bench in the middle and a dumbbell rack along the side wall.

Updated 2026-10-22 · By Charland & Co. · Based on published specs and public sources; we have not tested the products discussed.

A layout plan is just four numbers per item: width, depth, height and weight. Work them out first and the arrangement mostly decides itself.

Quick answer

A 48-inch-wide dumbbell rack needs about 48 + 18 = 66 inches (5.5 feet) of wall width, using our rule of thumb of 18 inches added to each dimension. A 6x8-foot space (96 inches on its long wall) fits that rack, but not a cable machine beside it, as the worked example below shows.

What a layout plan includes

Smart layouts are about more than just fitting equipment in a space - they're about creating a functional, safe, and efficient workout area. This means considering not only the footprint of the equipment but also the ceiling height, floor load capacity, and the user's physical needs.

For example, if you're planning a home gym in a studio apartment, you might prioritize compact, multi-functional equipment. In a garage, you might have more room to spread out but still need to be mindful of ceiling height and floor support.

Every layout starts with a clear understanding of the space. That's why we recommend measuring your area first. You can learn how to do this in our How to Measure Your Space for a Home Gym guide.

Calculating a smart layout

Let's walk through a real-life example. Imagine you have a 6x8-foot space (72 inches by 96 inches) and want to fit a 48-inch-wide dumbbell rack and a 36-inch-wide cable machine (example inputs, not a specific product; use the numbers on your own spec sheets).

Step 1: Calculate Footprint

Your space is 96 inches wide (8 feet), so this layout won't work. You'll need to either reduce the size of the equipment or find a different arrangement.

Step 2: Consider Ceiling Height

Step 3: Check Floor Load Capacity

Our site rule divides each item's loaded weight by its own footprint, not by the whole room, because the load sits under the equipment.
- Dumbbell rack, loaded: 200 lb on a 4 ft x 2 ft footprint = 8 sq ft (example inputs, not a specific product; use the numbers on your own spec sheets)
- Floor load: 200 / 8 = 25 lb per sq ft under the rack

Do the same for each item using its spec-sheet weight and footprint. Then confirm what your floor can carry with your landlord or a structural engineer. A rubber mat protects the floor surface; it does not add strength.

Layout math errors

  1. Ignoring Clearance Space: Add clearance to each machine; we add 18 inches to each dimension as a rule of thumb, and your equipment manual may ask for more.
  2. Overlooking Ceiling Height: Tall equipment such as some cable machines and power racks needs more ceiling height; check the spec sheet and add 12 inches.
  3. Underestimating Floor Load: Heavy equipment concentrates weight on a small footprint, so check your floor's capacity with your landlord or a structural engineer before you buy.
  4. Packing Too Much in One Area: Overcrowding can make your gym feel cramped and reduce usability.
  5. Not Measuring First: Always measure your space before buying equipment. You can find help with that in our How to Measure Your Space for a Home Gym guide.

Picking gear that fits the plan

The right equipment depends on your space, ceiling height, and floor type. For example, if you have a low ceiling, choose gear listed at your ceiling minus 12 inches or less; full pull-ups need roughly your height plus about 2 feet.

You can compare options in our Cable Machine vs Dumbbell Rack for Small Spaces guide. If you're unsure about your ceiling height, our Ceiling Height Calculator can help.

Layout tips

Planning numbers: clearance footprint

Example sizes, with 18 in added to each dimension (our planning rule of thumb; use the maker's clearance if the manual gives one).
Example itemFootprintWith clearance
Rack, 48 × 48 in16 sq ft66 × 66 in (30.3 sq ft)
Flat bench, 48 × 24 in8 sq ft66 × 42 in (19.3 sq ft)
Dumbbell rack, 36 × 18 in4.5 sq ft54 × 36 in (13.5 sq ft)

Questions about layout planning

Q: Can I fit a full-sized treadmill in a 5x5 space?
A: Usually not. Check the length on the treadmill's spec sheet and the clearance its manual asks for behind and beside the deck. For example, a 60-inch-long deck plus 18 inches by our rule of thumb needs 60 + 18 = 78 inches (6.5 feet), more than the 60 inches a 5x5 space offers.

Q: What's the minimum ceiling height for a home gym?
A: There is no single minimum. Take your tallest equipment's height plus 12 inches, then compare it with the tallest user's standing reach and use the higher number. For overhead moves, plan roughly your height plus about 2 feet (our planning estimate, not a measured figure).

Q: How do I calculate floor load?
A: Divide each item's weight by its own footprint in square feet (lb/sq ft). That is the load, not the floor's capacity; confirm the rating with your landlord or a structural engineer.

Q: Can I use a foam floor mat on a wooden floor?
A: Yes, but make sure the mat is thick enough to protect the floor and provide cushioning. You can read more about this in our Rubber Floor Mat vs Foam Floor Mat guide.

Q: What if my space is irregularly shaped?
A: Irregular spaces can still work with smart layouts. Focus on the largest open area and place equipment there. Use our Corner Layout vs Linear Layout guide for ideas.

Related guides

If you're ready to start planning your layout, you can use our Footprint Calculator to get a better idea of what will fit in your space.

For more layout ideas, check out our Smart Layouts for a 10x10 Home Gym and Smart Layouts for a 15x15 Home Gym guides.

Remember, the key to a smart layout is balance - between space, equipment, and safety. With the right planning, even the smallest space can become a functional home gym.
