Cable machine vs dumbbell rack for small spaces

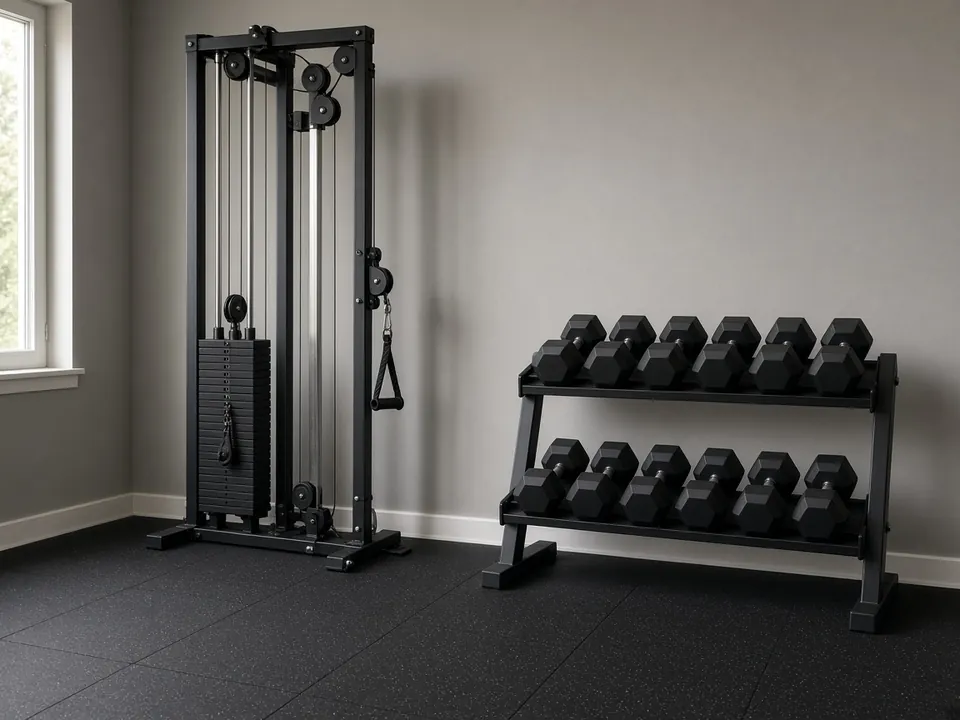

A compact cable machine beside a two-tier rack of hex dumbbells on black rubber flooring.

Updated 2026-10-22 · By Charland & Co. · Based on published specs and public sources; we have not tested the products discussed.

Both tools can work in a small US apartment or garage bay. Compare footprint (width x depth), the clearance bounding box, ceiling needed, and floor load on the footprint — not the clearance area. Example dimensions are planning numbers; check the maker's spec page.

Footprint first

Equipment Width x depth Footprint
Cable machine (example) 4 ft x 3 ft 12 sq ft
Dumbbell rack (example) 3 ft x 2.5 ft 7.5 sq ft

Footprint never uses height. Height feeds the ceiling check only.

Clearance box for each machine

Cable machine — 18 in (1.5 ft) added to each dimension (our planning rule of thumb):

Dumbbell rack — the same rule, 18 in added to each dimension:

Use the maker's clearance instead if the manual gives one.

6 ft x 4 ft room (24 sq ft)

Room area = 6 x 4 = 24 sq ft.

Option Footprint Bounding box Fits 24 sq ft room?
Cable 12 sq ft 24.75 sq ft No (24.75 > 24, and 4.5 ft deep vs a 4 ft room)
Dumbbell rack 7.5 sq ft 18 sq ft Yes (4.5 × 4 ft fits 6 × 4 ft; 18 ≤ 24)

In a room this small, look for a narrower rack, wall-mounted storage, or a compact functional trainer whose maker clearance fits (check the maker's manual for the required clearance). Check both sides of the box against the room, not just the area.

Ceiling needed = equipment height + 12 in

Equipment Example height Ceiling needed
Cable machine 7 ft (84 in) 84 + 12 = 96 in (8 ft)
Dumbbell rack 5 ft (60 in) 60 + 12 = 72 in (6 ft)

Saying "7 ft +" without adding the 12 in understates the cable machine. Human overhead moves still need a separate user-height + reach check.

Floor load uses footprint only

Formula: Divide each item's weight (plus you, if you stand or lie on it) by that item's own footprint in square feet.

Option Example weight (planning number) Footprint Floor load
Cable machine 300 lb 12 sq ft 300 / 12 = 25 lb/sq ft
Dumbbell rack + weights 500 lb 7.5 sq ft 500 / 7.5 ≈ 66.7 lb/sq ft

Wrong method (do not use): 300 / 24.75 using clearance area. Confirm capacity with your landlord or a structural engineer. The residential code's minimum is 40 lb per sq ft for most rooms and 30 for bedrooms (IRC Table R301.5).

Example: 10x10 room (100 sq ft), 8 ft ceiling

Open room is large enough for either bounding box (24.75 or 18 < 100).

Check Cable Dumbbell rack
Footprint 12 sq ft 7.5 sq ft
Bounding box 24.75 sq ft 18 sq ft
Ceiling needed 8 ft (matches 8 ft ceiling if unit is 7 ft + 12 in) 6 ft (OK)
Floor load 25 lb/sq ft on 12 sq ft ≈66.7 lb/sq ft on 7.5 sq ft
Storage Plates may need a separate spot Dumbbells live on the rack

Pick the cable unit when you need pulley patterns and you can accept plate storage elsewhere. Pick the rack when storage density and a smaller footprint matter more. Always re-check maker clearance (check the maker's manual for the required clearance).

Comparison snapshot

Feature Cable machine Dumbbell rack
Footprint 12 sq ft 7.5 sq ft
Bounding box 24.75 sq ft 18 sq ft
Ceiling needed (example) 8 ft 6 ft
Floor load example 25 lb/sq ft ≈66.7 lb/sq ft

Cable vs rack slips

Planning numbers: clearance footprint

Example sizes, with 18 in added to each dimension (our planning rule of thumb; use the maker's clearance if the manual gives one).
Example itemFootprintWith clearance
Rack, 48 × 48 in16 sq ft66 × 66 in (30.3 sq ft)
Flat bench, 48 × 24 in8 sq ft66 × 42 in (19.3 sq ft)
Dumbbell rack, 36 × 18 in4.5 sq ft54 × 36 in (13.5 sq ft)

Questions about cable machines and racks

Can I fit a cable machine in a 10 sq ft space?

No. The example unit alone is 12 sq ft of footprint, and the clearance box is 24.75 sq ft. A 10 sq ft open patch is too small.

What is the minimum ceiling height for a cable machine?

Ceiling needed = equipment height + 12 in. A 7 ft-tall unit needs 8 ft. Overhead user moves may need still more.

How do I calculate floor load?

Divide each item's weight (plus you, if you stand or lie on it) by that item's own footprint in square feet (12 for the cable example, 7.5 for the rack example). Not ÷ 24.75 or ÷ 18.

Is a cable machine better for full-body work?

It offers more pulley angles. A rack wins on storage density and usually on footprint. Choose by space first, exercise list second. No medical or training-prescription claims.
