Home gym equipment for a studio apartment

Updated 2026-10-22 · By Charland & Co. · Based on published specs and public sources; we have not tested the products discussed.

Studio size varies; measure yours. Pick multi-use gear, measure footprint correctly, then add clearance and check ceiling and floor load before you buy. Specs you can't confirm should come from the maker's spec page.

How much floor a studio leaves

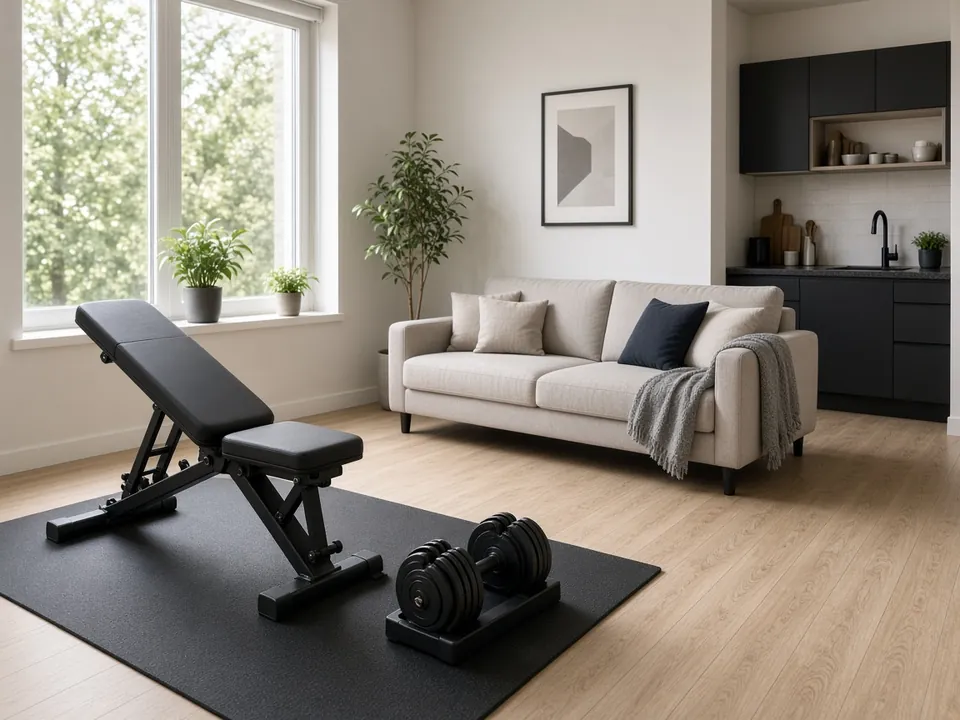

You rarely get a full room. Plan for a training zone that can be packed away: adjustable dumbbells on a compact rack, a wall-mounted pull-up bar, and a folding bench. Cardio machines with long decks usually fail the footprint test first.

Site formulas used on this page:

• Footprint (sq ft) = width (ft) x depth (ft) — never multiply by height
• Clearance width (in) = equipment width + 18 (18 inches added to each dimension) (TinyGymGuide planning rule of thumb, not a code or maker figure; use your maker's manual clearance if it differs)
• Ceiling needed (equipment) = equipment height + 12 in
• Floor load (lb/sq ft): divide each item's weight (plus you, if you stand or lie on it) by that item's own footprint in square feet (the residential code's minimum is 40 lb per sq ft for most rooms and 30 for bedrooms, IRC Table R301.5)

Footprint and clearance requirements

Footprint is the rectangle the unit sits on. Clearance is extra walk/reach space and is not part of the footprint used for floor-load math.

Rack clearance worked number: a 36-inch-wide rack with 18 inches added to its width needs:

36 + 18 = 54 inches = 4.5 ft of total width

We use one rule site-wide: add 18 inches once to each dimension. If your maker's manual asks for more, use its figure.

Example depths. Example dimensions are planning numbers; check the maker's spec page.

Headroom in a studio

Two different checks:

1. Equipment stack: Ceiling needed = equipment height + 12 in.
2. Human overhead moves (pull-ups, presses): plan about user height + arm-reach estimate. For a 6 ft user with an estimated ~2 ft of reach, plan about 8 ft of ceiling (our planning estimate, not a measured figure). A 72-inch (6 ft) ceiling is not enough for a 6 ft person to do full pull-ups.

A 7 ft (84 in) ceiling fits racks listed at 72 in or less (our 12-inch rule of thumb) and bands; a doorway or wall bar works for hangs, not full pull-ups for a 6 ft user. Measure before you mount anything.

5x5 studio corner (25 sq ft)

Room: 5 ft x 5 ft = 25 sq ft. Goal: rack + pull-up bar + folding bench.

1. Dumbbell rack

• Footprint: 3 ft x 3 ft = 9 sq ft
• Clearance width: 36 + 18 = 54 in (4.5 ft) total width needed
• Depth with clearance: 3 + 1.5 = 4.5 ft bounding depth
• Bounding box: 4.5 ft x 4.5 ft = 20.25 sq ft (layout only — not used for floor load)

2. Pull-up bar (wall zone)

• Footprint on floor: 3 ft x 1 ft = 3 sq ft
• Ceiling for a 6 ft user: about 6 + 2 = 8 ft with reach estimate, or skip pull-ups if the ceiling is lower

3. Folding bench

• Footprint open: 3 ft x 2 ft = 6 sq ft
• Store folded against the wall when not in use

Totals that must add up

So the footprints fit, and the rack's 4.5 × 4.5 ft clearance box (20.25 sq ft) fits the 5 ft bay with 6 inches to spare. Fold the bench away when you train at the rack, and use the maker's clearance if its manual asks for more.

Floor load (uses footprint only)

Example weight (planning number): rack + dumbbells 200 lb on 9 sq ft → 200 / 9 ≈ 22.2 lb/sq ft. Do not divide by the 20.25 sq ft clearance box.

Studio setup errors

• Multiplying width by height and calling it footprint
• Adding the 18-inch clearance twice (36 + 18 + 18); our rule adds it once per dimension: 36 + 18 = 54 in
• Summing footprints incorrectly or mixing clearance area into floor load
• Assuming a 6 ft ceiling is enough for a 6 ft user to do pull-ups
• Buying before measuring the real open rectangle, not the whole apartment sq ft

Planning numbers: clearance footprint

Questions about studio gyms

Can I fit a treadmill in a studio apartment?

Only a compact foldable model, and only if the open length and width cover the deck plus maker clearance (check the maker's manual for the required clearance). Many full-size decks fail a 5x5 corner.

What ceiling height do I need for a pull-up bar?

Use user height + arm-reach estimate for the move itself (about 8 ft for a 6 ft user in the example above). The equipment-only rule (height + 12 in) is not enough by itself for a person hanging from the bar.

How do I calculate floor load?

Divide each item's weight (plus you, if you stand or lie on it) by that item's own footprint in square feet. Compare the result to a value your landlord or engineer confirms. The residential code's minimum is 40 lb per sq ft for most rooms and 30 for bedrooms (IRC Table R301.5). Never use the clearance bounding box as the divisor.

What fits a true 5x5 ft open square?

Footprints totaling about 18 sq ft (9 + 3 + 6) can sit in 25 sq ft, and a 36 in rack needs 54 in of width with our 18-inch clearance, which fits a 60 in bay. Use the maker's clearance if its manual asks for more.

Can I use a cable machine in a studio?

Only a compact unit whose width x depth footprint and full clearance box fit your open rectangle (check the maker's manual for the required clearance). See cable machine vs dumbbell rack.
