Smart layouts for a 10x10 home gym

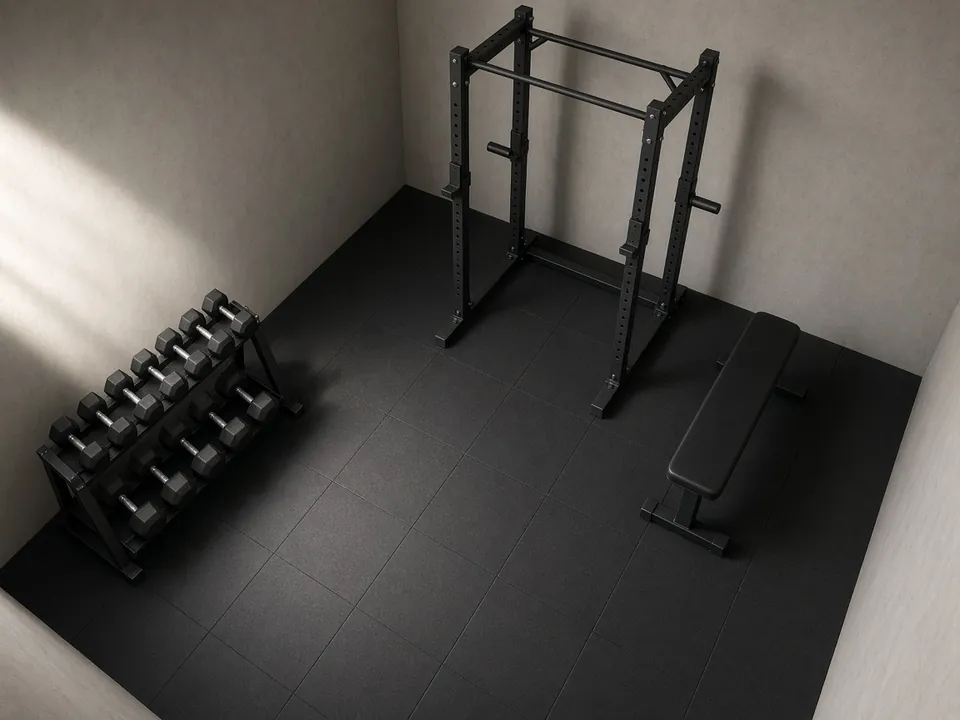

A room corner on black rubber flooring with a power rack, a flat bench and a dumbbell rack set along the walls and open floor in the middle.

Updated 2026-10-22 · By Charland & Co. · Based on published specs and public sources; we have not tested the products discussed.

A 10x10 room sounds roomy until a rack, a bench and their clearance zones go in. Here is how the 100 sq ft splits up.

Quick answer
A 10x10 home gym gives you 100 sq ft. Add up each item's footprint with 18 inches added to each dimension, and keep the rest as open floor for movement. Check the ceiling is at least the equipment height plus 12 inches, and work out floor load from each item's weight and its own footprint.

What 100 sq ft holds

A 10x10 room is 100 square feet in total. This is a common size for a dedicated home gym in a small apartment or a garage. Before placing any equipment, measure the room accurately. You can use a tape measure or a laser distance tool for this. If you're unsure about the exact dimensions, refer to How to Measure Your Space for a Home Gym.

Once you have the measurements, you can start planning where to place your equipment. A good rule of thumb is to add 18 inches to each dimension of each piece (our planning rule of thumb). This matters most for machines that require a lot of space, like treadmills or cable machines.

Picking gear by footprint

When selecting equipment for a 10x10 space, choose pieces that are compact and efficient. A dumbbell rack, a pull-up bar, a treadmill and a bench can each fit this size of space; check each maker's listed footprint. You can also consider a multi-functional piece of equipment, like a cable machine that can be used for a variety of exercises.

For more ideas on what equipment to choose, see Home Gym Equipment That Fits Small Spaces. This page provides a list of equipment that is well-suited for small and mid-sized home gyms.

Fitting a dumbbell rack and treadmill

Let's say you want to fit a 4 × 2 ft dumbbell rack and a 6.5 × 3 ft treadmill (example sizes) in your 10x10 space. Here's how you can calculate the footprint and clearance:

  1. Dumbbell rack footprint: 4 ft x 2 ft = 8 square feet.
  2. Treadmill footprint: 6.5 ft x 3 ft = 19.5 square feet.
  3. Clearance: add 18 inches (1.5 feet) to each dimension (our planning rule of thumb). - Dumbbell rack: 5.5 ft x 3.5 ft = 19.25 square feet. - Treadmill: 8 ft x 4.5 ft = 36 square feet.
  4. Total space used: 19.25 + 36 = 55.25 square feet.
  5. Result: 55.25 fits inside the room's 100 square feet.

Where it overflows: a 6 × 4 ft cable machine, a 6.5 × 3 ft treadmill and a 6 × 4 ft rack need 7.5×5.5 + 8×4.5 + 7.5×5.5 = 41.25 + 36 + 41.25 = 118.5 sq ft, which is more than 100, so all three do not fit. Redo the sums with the maker's listed sizes.

Three ways to arrange it

There are several layout ideas that can work well in a 10x10 space. One popular option is the linear layout, where all the equipment is placed in a straight line along one wall. This layout keeps the equipment along one wall and leaves the rest of the floor open.

Another option is the corner layout, where the equipment is placed in the corners of the room. This layout leaves the middle of the room open. You can also combine the linear and corner layouts to create a hybrid layout that works well for your specific needs.

For more layout ideas, see Corner Layout vs Linear Layout for Home Gyms.

Where 10x10 plans go wrong

When setting up a 10x10 home gym, it's easy to make some common mistakes that can affect the overall functionality and comfort of the space. Here are a few mistakes to avoid:

To avoid these mistakes, plan carefully and consider all the factors that can affect the functionality and comfort of your home gym.

Headroom check

Some equipment, like cable machines or pull-up bars, require a certain amount of ceiling height to function properly. There is no single minimum. Work from your tallest piece: its listed height plus 12 inches (our planning rule of thumb). For overhead moves, plan roughly your height plus about 2 feet (our planning estimate, not a measured figure).

If your ceiling is low, you may need to choose equipment that is designed for low ceilings. For more information on this, see How to Choose Home Gym Equipment for Low Ceiling Spaces.

Floor load check

Floor load is each item's weight ÷ its own footprint, e.g. treadmill 200 lb ÷ (6.5 × 3 = 19.5 sq ft) ≈ 10.3 lb/sq ft. Compare it with what your landlord or a structural engineer confirms. The IRC 40/30 psf figures are design minimums for loads spread evenly across a floor, not a safe rating for a loaded rack.

For more information on floor load, see Floor Load Capacity for Home Gym Equipment.

Planning numbers: clearance footprint

Example sizes, with 18 in added to each dimension (our planning rule of thumb; use the maker's clearance if the manual gives one).
Example itemFootprintWith clearance
Rack, 48 × 48 in16 sq ft66 × 66 in (30.3 sq ft)
Flat bench, 48 × 24 in8 sq ft66 × 42 in (19.3 sq ft)
Dumbbell rack, 36 × 18 in4.5 sq ft54 × 36 in (13.5 sq ft)

Questions about a 10x10 layout

Q: What is the best layout for a 10x10 home gym?
A: Which layout suits a 10x10 room depends on your specific needs and preferences. A linear layout keeps equipment along one wall, while a corner layout leaves the middle of the room open.

Q: Can I fit a treadmill in a 10x10 space?
A: Yes, you can fit a treadmill in a 10x10 space, but you need to make sure there is enough clearance around the treadmill for safety and ease of movement.

Q: What is the minimum ceiling height for a home gym?
A: There is no single minimum. Work from your tallest piece: its listed height plus 12 inches (our planning rule of thumb). For overhead moves, plan roughly your height plus about 2 feet (our planning estimate, not a measured figure).

Q: How do I calculate the floor load for my home gym?
A: Divide each item's weight (plus you, if you stand or lie on it) by that item's own footprint in square feet. This gives the load per square foot; compare it with the floor's rating from your landlord or a structural engineer.

Q: What equipment is best for a 10x10 home gym?
A: Gear that fits a 10x10 room includes a dumbbell rack, a treadmill, a pull-up bar, and a bench. These are common choices for small and mid-sized home gyms; check each item's listed footprint first.
